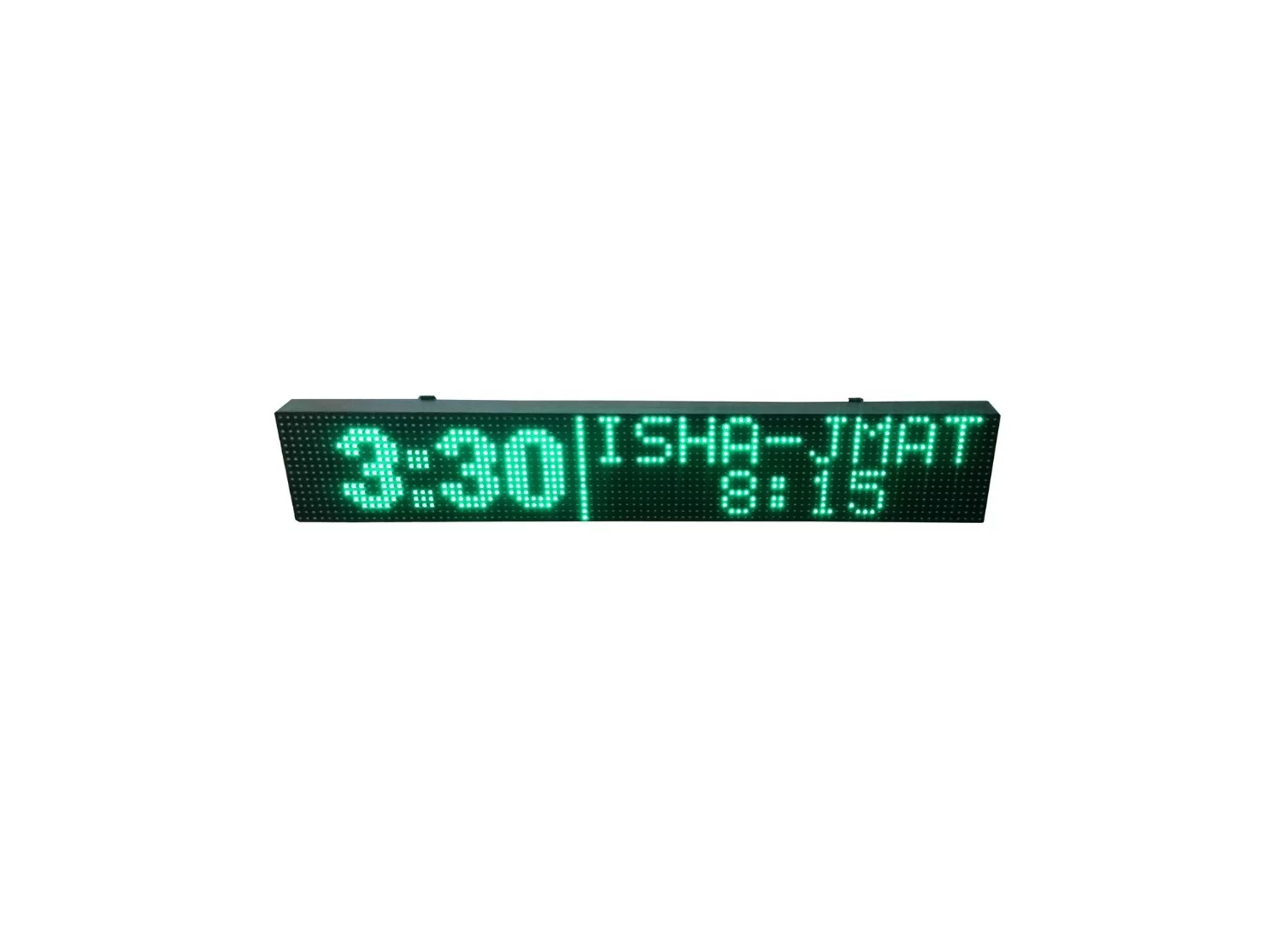

AlAleem Systems India Smart Azan Clock Automatic Salaah Time Indiacator Masjid Display

[M1] Smart Prayer Times Display for Masjids & Offices | Azan Times Clock | LED Salaah Time Indicator | Remote Control from Phone

₹10,999.00




Automated Salaah Namaz (Prayers) Timings LED Display & Digital Clock for Masjids, Madrasas, Maktabs, Offices & Homes. Fully Automatic with Jamath notifications. Update Jamath, Namaz Prayer times directly from Phone. Smart Wall Clock for Masjids

SKU: ALAL_LED_MJ_01

Category:

Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Clear

Smart Automatic App Controlled Salaah/Namaz (Prayers) Timings LED Display & Digital Clock for Masjids, Madrasas, Maktabs, Offices & Homes. Fully Automatic with Jamath notifications & Countdown. Update info directly from Android App or from Phone/PC’s Web Browser. Software Updates for new features.

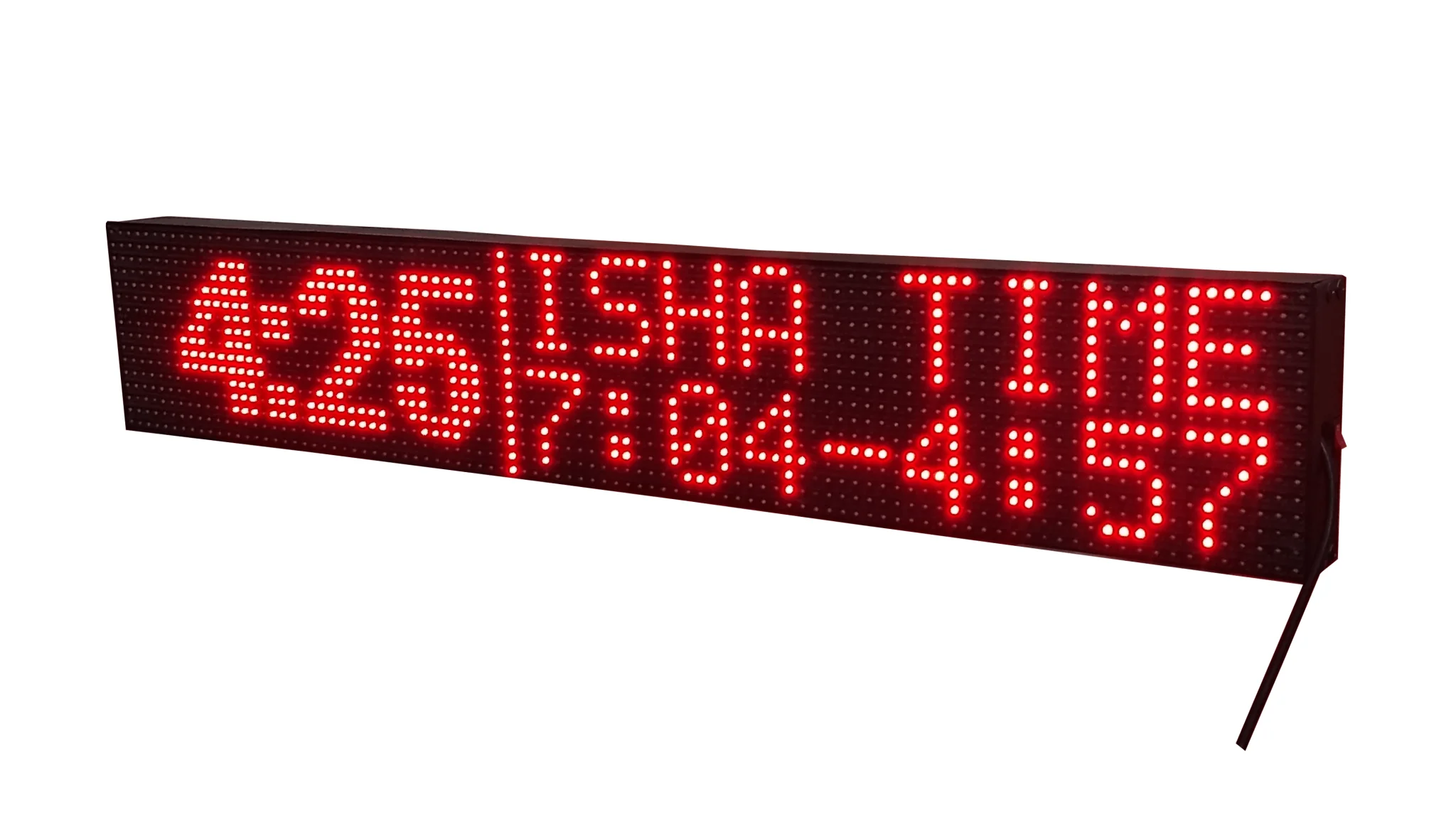

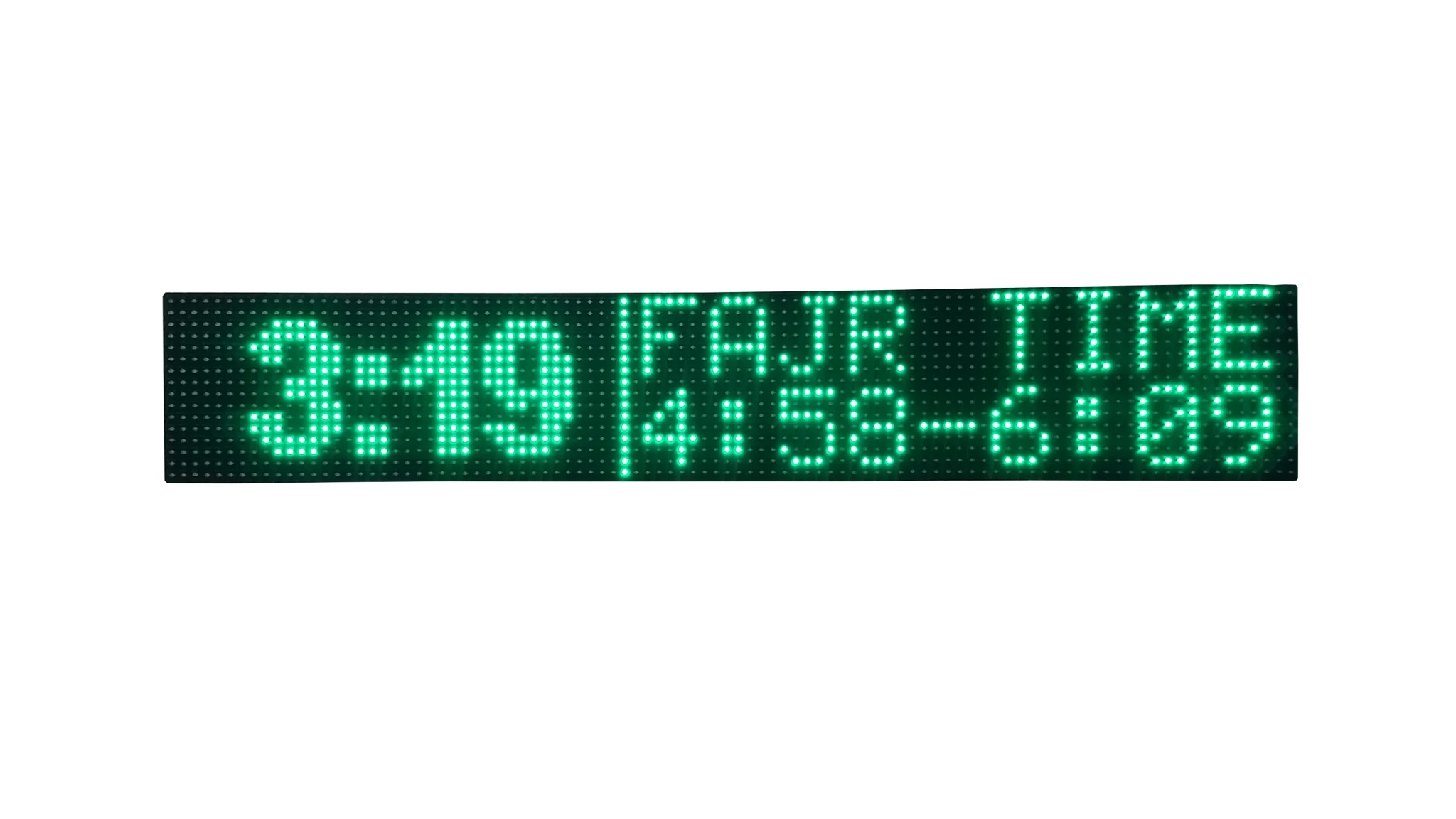

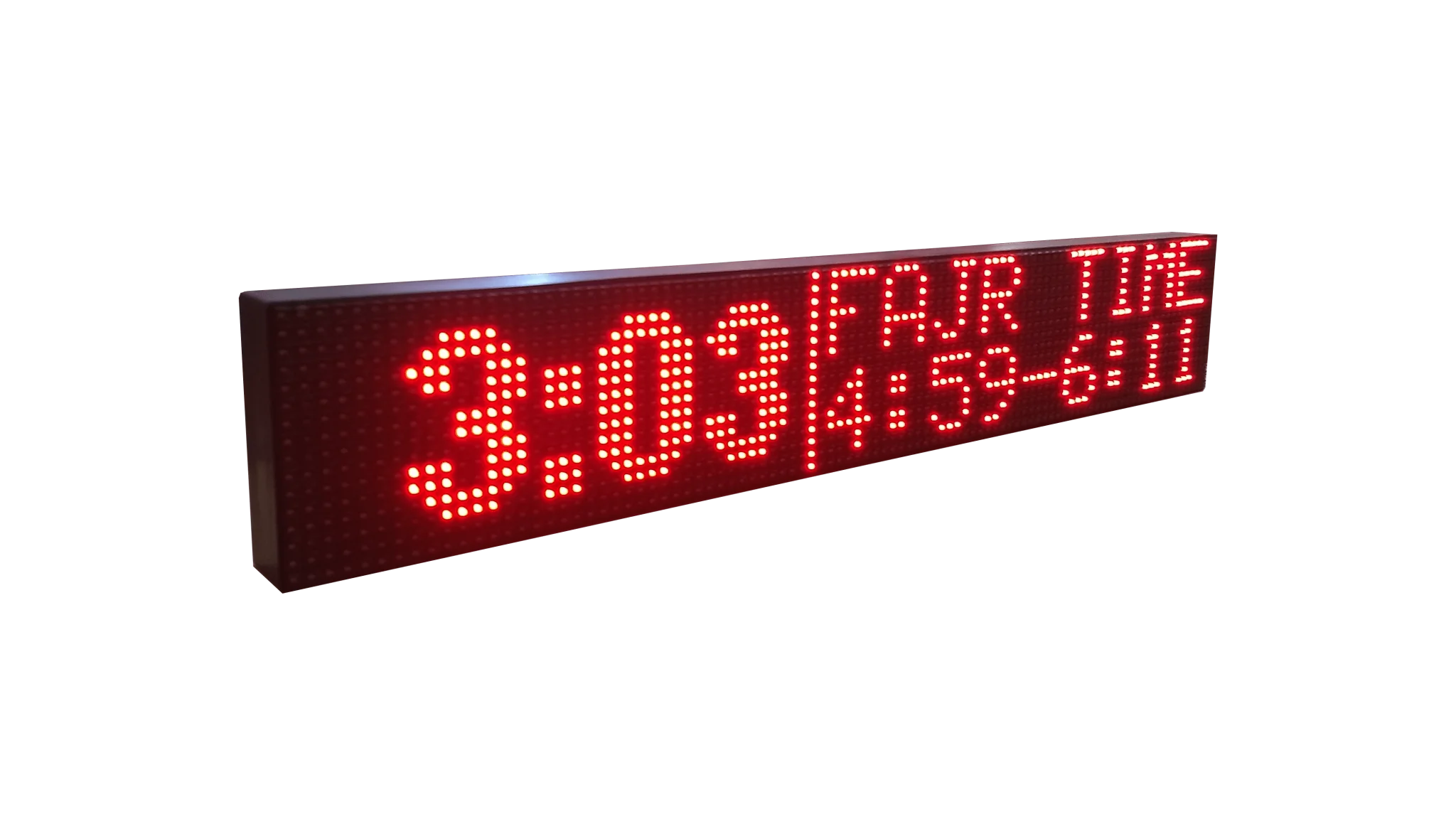

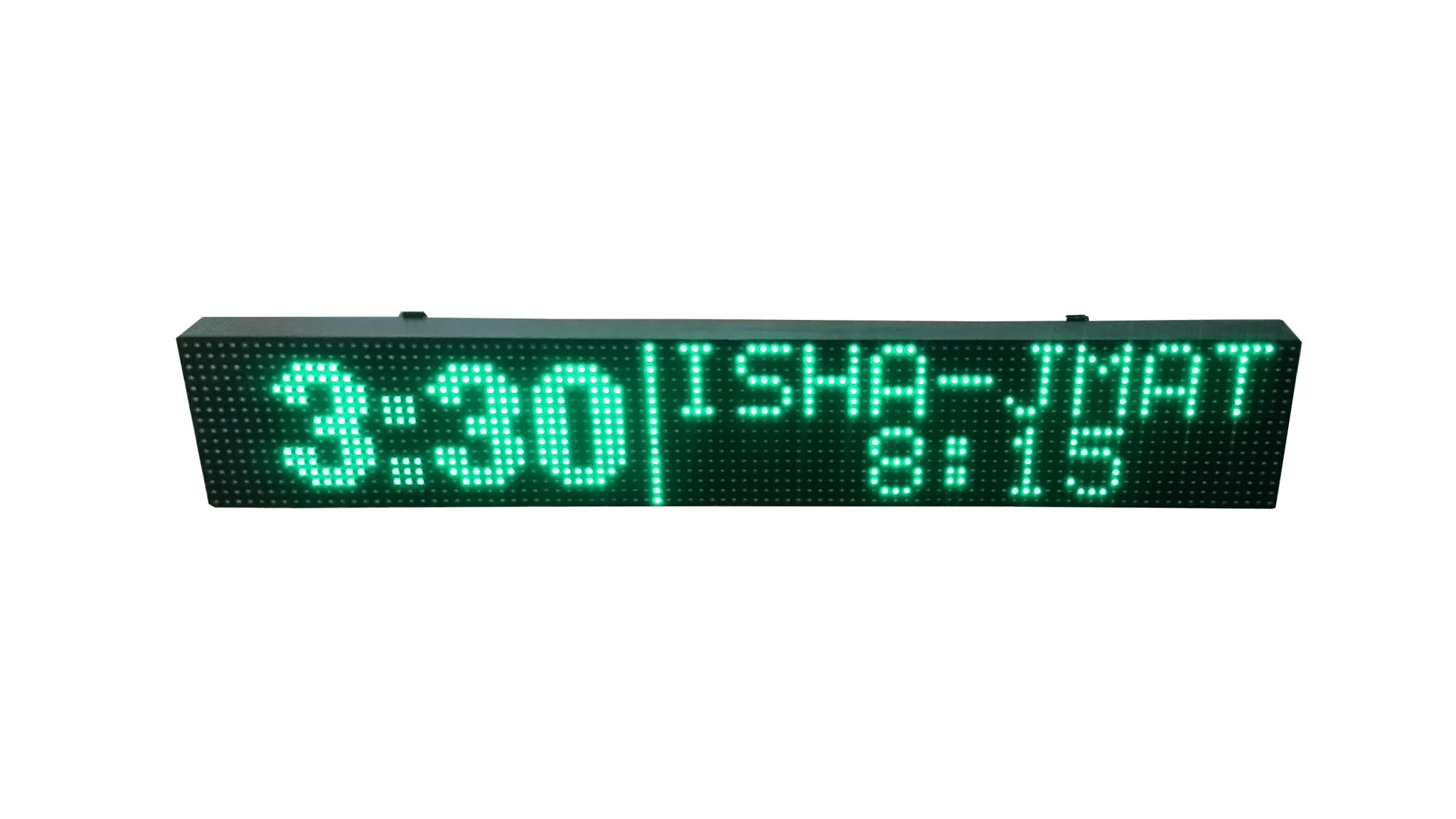

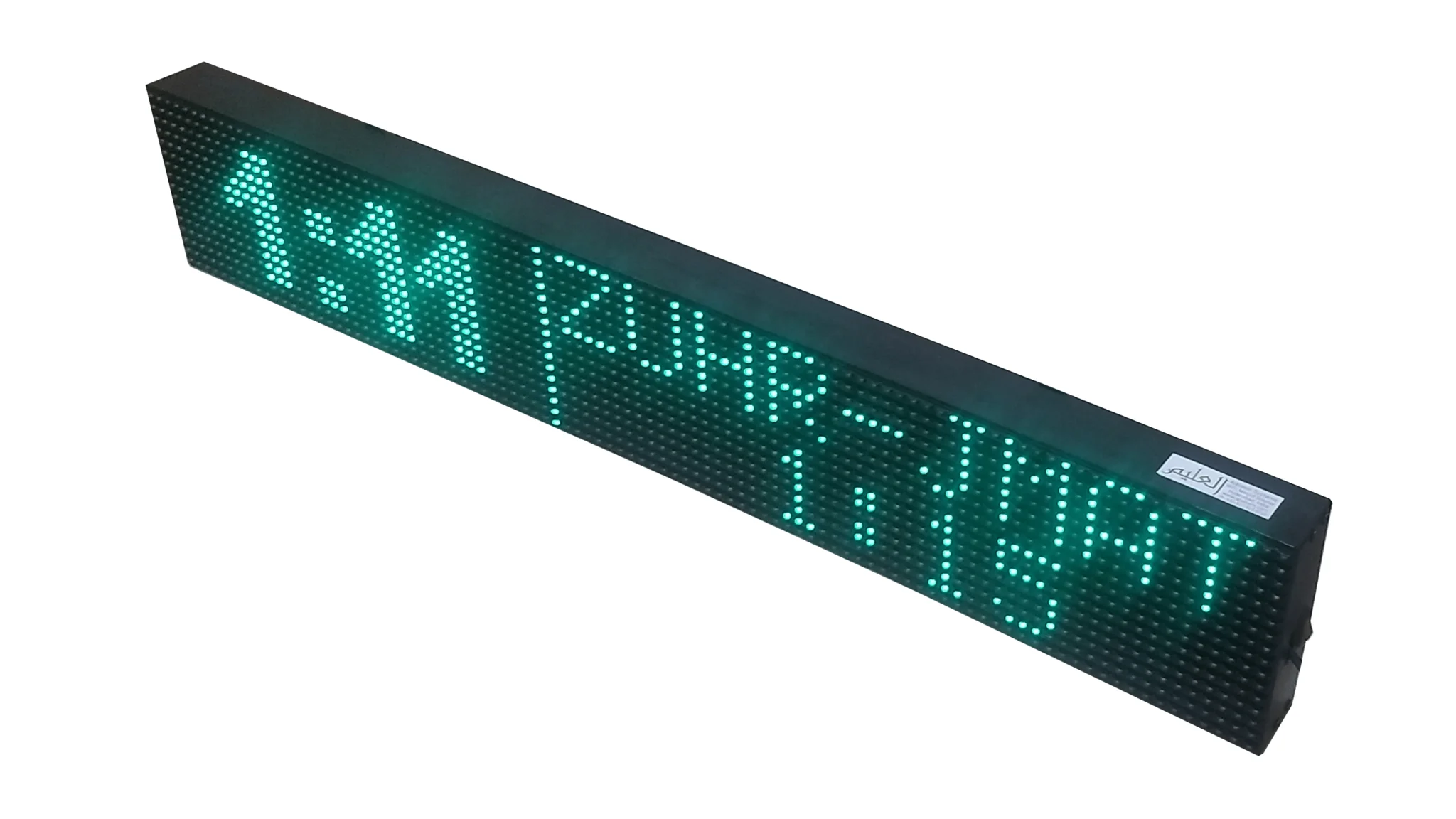

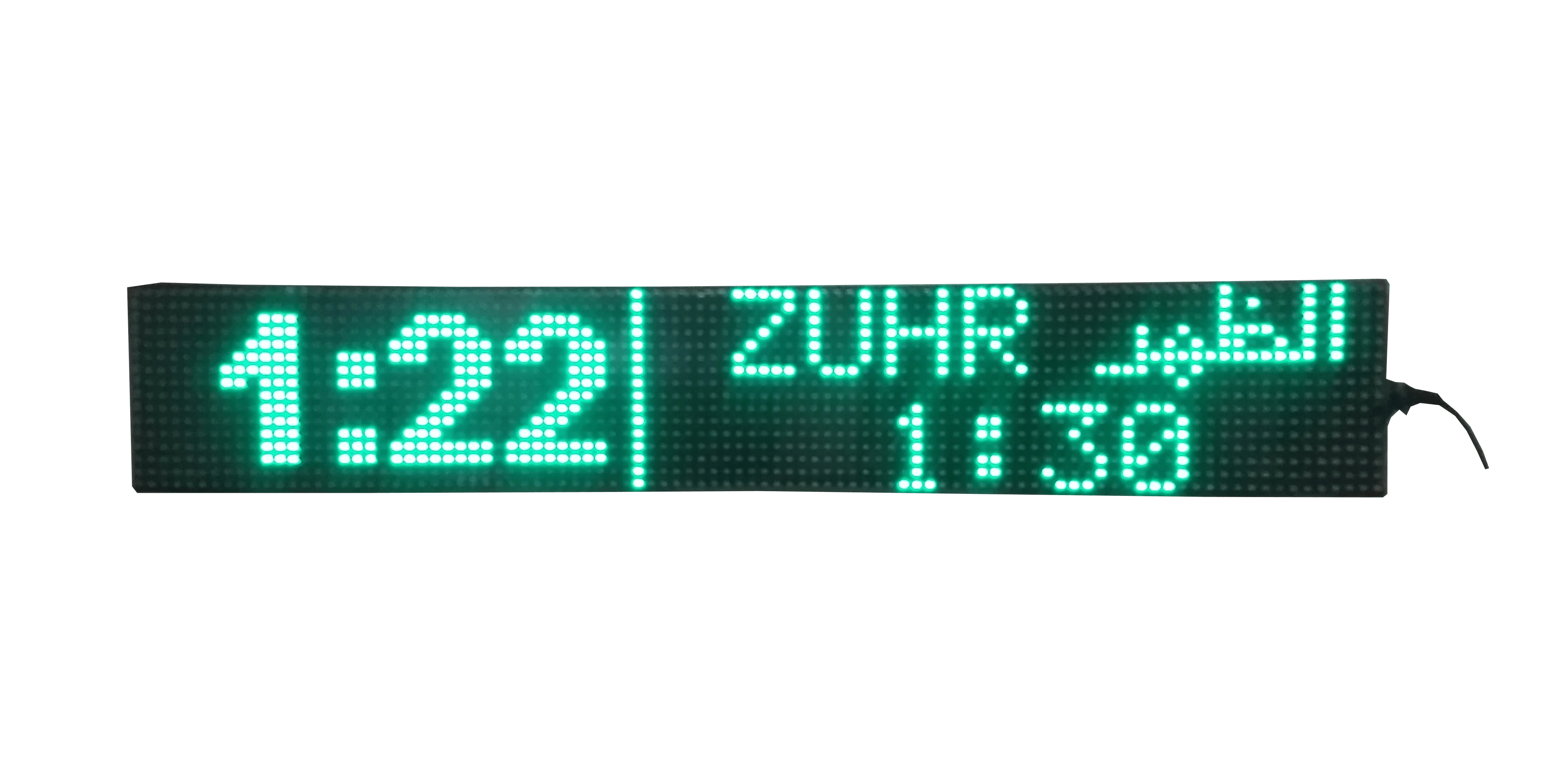

🕌 M1 – AlAleem Smart Prayer Times LED Display 🕌

🔹 Product Dimensions: 97 cm x 17 cm x 6 cm (Length x Height x Width) / 38″ x 7″ x 2.5″ (inch)

🔸Main Time Display Height: 14 cm (5.5″ inch)

🔹Jamath Prayer Times and other times like Ishraq, Zawal, Tulu, Sahr Iftar etc in right section: 7 cm (2.75″ inch)

🔸 Hadiya: ₹11,000 + GST Extra @ 18%

🔹 One year warranty



21 Options Shown in the LED Display:

  1. Main Clock (left side): 14 Cm Height
  2. FAJR – Jamath time of Masjid (have to be set from Phone App)
  3. FAJR Time – Start & End Time of Fajr (automatically updated daily based on City Settings)
  4. ZUHR
  5. ZUHR Time
  6. ASR
  7. ASR Time
  8. MAGHREB Azan Time – (automatically updated daily based on City Settings)
  9. MAGHREB Time
  10. ISHA
  11. ISHA Time

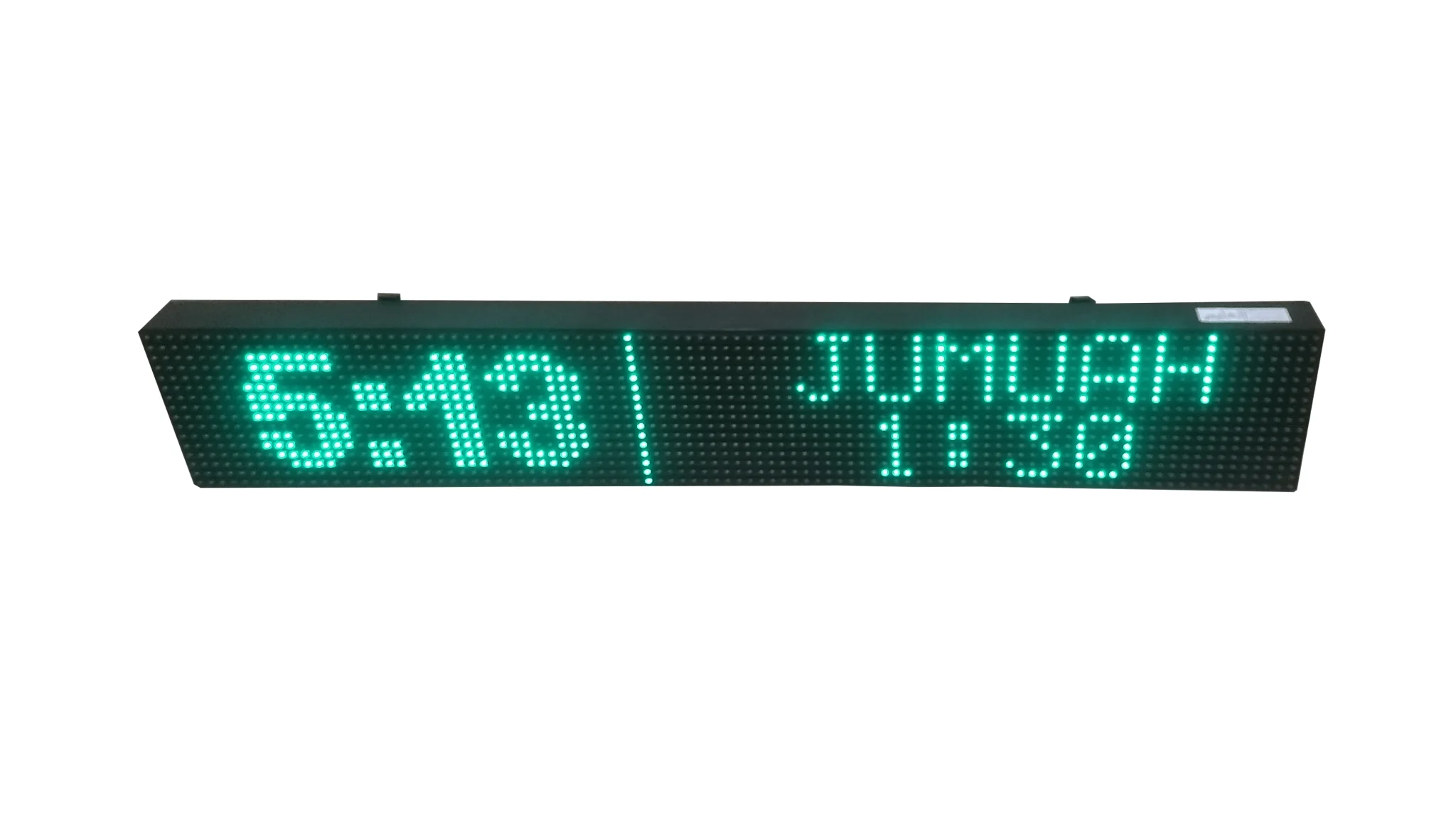

  12. JUMUAH – Show Friday Prayer Time if enabled in Masjid
  13. TULU-AFTB (Sunrise Time, automatically updated daily based on City Settings)

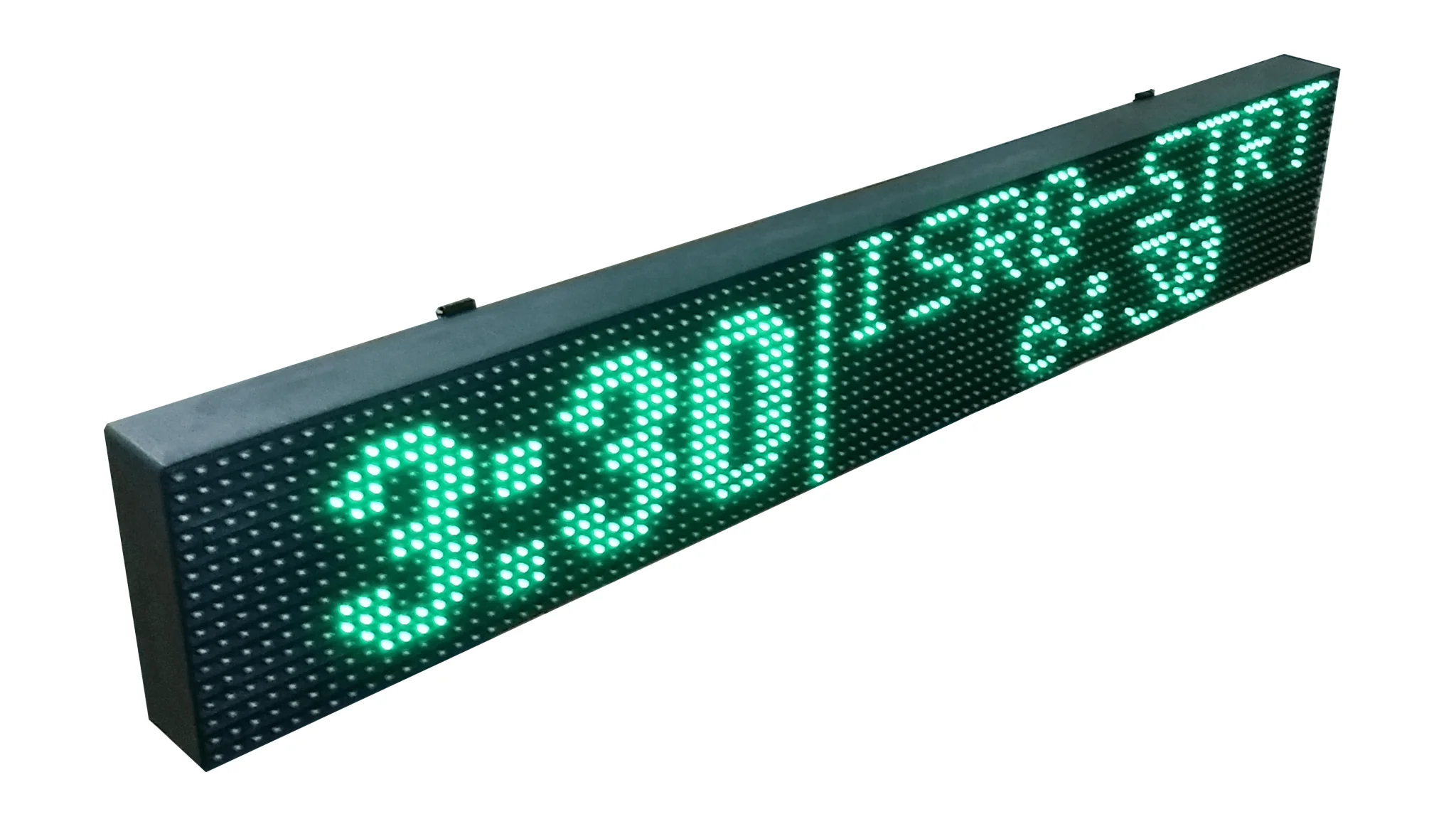

  14. ISHRAQ – (automatically updated daily based on City Settings)
  15. ZAWAL – (automatically updated daily based on City Settings)
  16. Gregorian Date
  17. Hijri Date
  18. Custom Message 1 (Show any Custom Message like Masjid Name)
  19. Custom Message 2 (Show message like Silent Phones here)
  20. SAHR ENDS – Saher Time – (automatically updated daily based on City Settings) – Show in Ramadhan
  21. IFTR STRT – Iftar Start Time



📌 Key Features of M1 AlAleem Smart Prayer Times LED Display 📌

✅ Displays all Times, Events & Info with 5 Sec Duration each in Idle mode

✅ Automatically change to fixed display showing upcoming Jamath/Prayer/Event Time few minutes before the Jamath/Prayer/Event Time

✅ 60 Seconds Countdown before Jamath with Beep alert when time’s reached

✅ Start & End Times of All Prayers automatically updated daily based on City Settings

✅ Automatic daily update of Maghreb Time (can be adjusted from 📱 to add/subtract few minutes)

✅ Display Tulu-e-Aftab/Sunrise, Ishraq & Zawal (automatically updated daily based on City Settings)

✅ Display Saher & Iftar Times in Ramazan (automatically updated daily based on City Settings)

✅ Display Masjid/Organization Name (changed from Phone 📱) along with Custom Message like Eid Times

✅ Display Day & Date 📅 (including Hijri Date)

✅ Asr Calculation: Hanafi or Hanbali, Maliki, Shafi (Select from App 📱)

✅ Prayer Settings for any City/Town/Village in India and 1000s of Cities worldwide

✅ App 📱 to update Prayer Timings directly from Phone. No separate Remote Control required

✅ Internal RTC (Real Time Clock) with 2 years backup battery 🔋 to maintain time when Device is turned Off

✅ New features available after purchase via software updates

✅ No installation required by any technician or anyone. Easy Plug and Play Device. Simply hang to Wall and use



🔆All Namaz Start, End Times, Maghreb, Ishraq, Zawal, Saher, Iftar are automatically updated daily based on City Settings

🔆You only have to update local Masjid Jamath times from Phone App 📱

🔆Normal time, saare Namaz ke times ek ke baad ek display hote rahenge, har 5 Seconds ke waqfe se

🔆 Jamath se 15 minutes pehle, sirf aane wali Jamath ka time dikhega. Dusre times jo change ho rahe the display pe, woh ruk jayenge taake sirf aane wali Jamath ka time dikhe Masjid mein aane waale musalliyon ko

🔆 Jamath se ek minute pehle, buzzer bajega 🔊 at Jamath time for 3 seconds

🔆 Brightness, Masjid Ka Naam, etc aap phone ke app se directly set kar sakte hai

🔆 Size hai 3.2 feet wide x 7 inch height

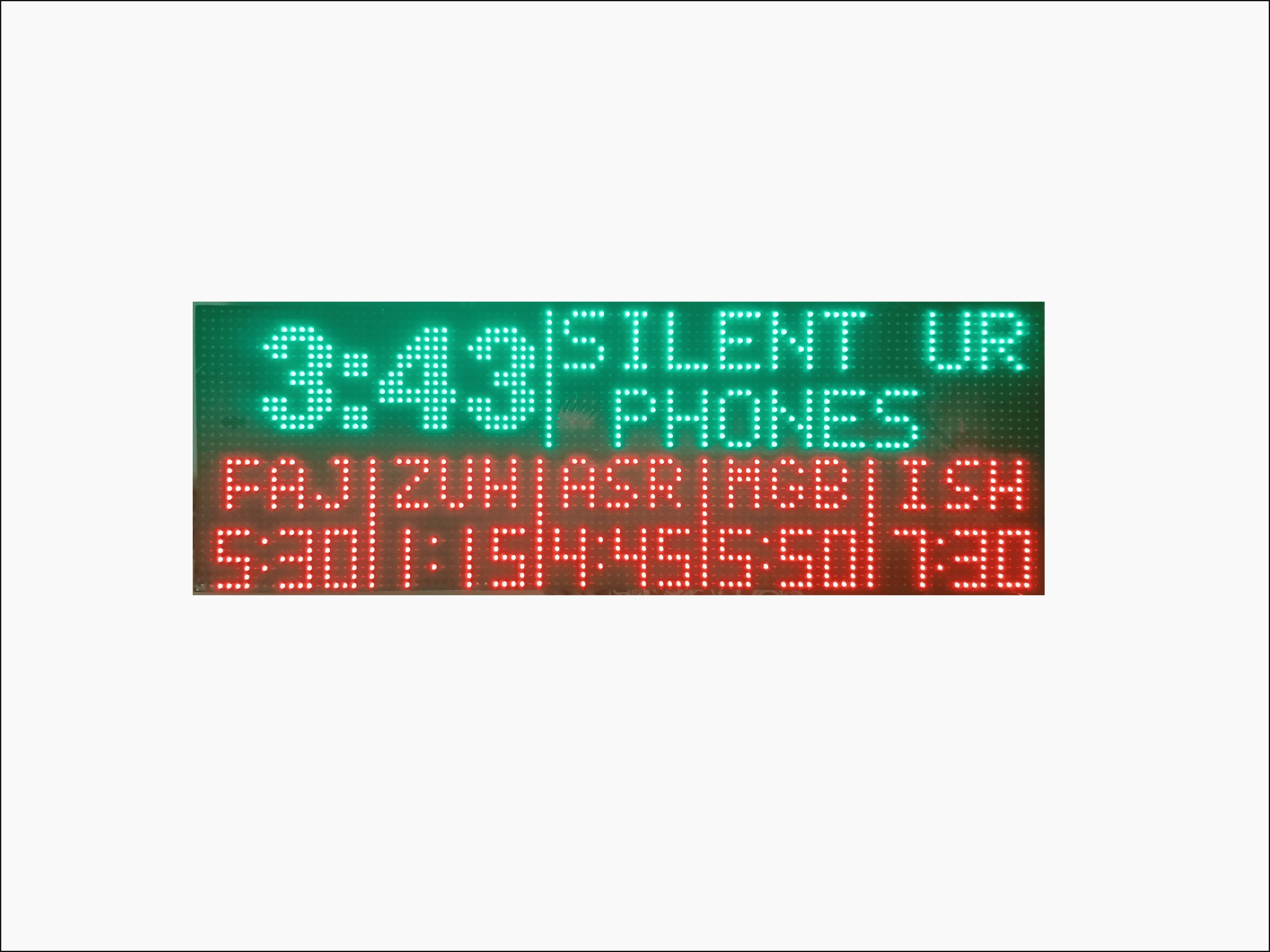

🔆 Ismein agar aapko 5 waqt namaz bhi display karna hai hamesha toh dusra bhi model hai, L1, iski Size 3.2 feet wide x 1.1 feet height

🔆 Completely phone se controlled hai, brightness adjustable hai. Maghreb, Ishraq, Tulu, Zawal etc all automatic. Aapko sirf Jamath ke times set karna hai

☪️ Order can be placed by making full payment through Google Pay or Phone Pay 📲 or Debit Cards 💳 or NetBanking 🏦

☪️ Unit will be shipped through Courier 📦 to any location in India

☪️ Hyderabad based Customers can directly pickup their Order from our Office or we can also send it to Masjid

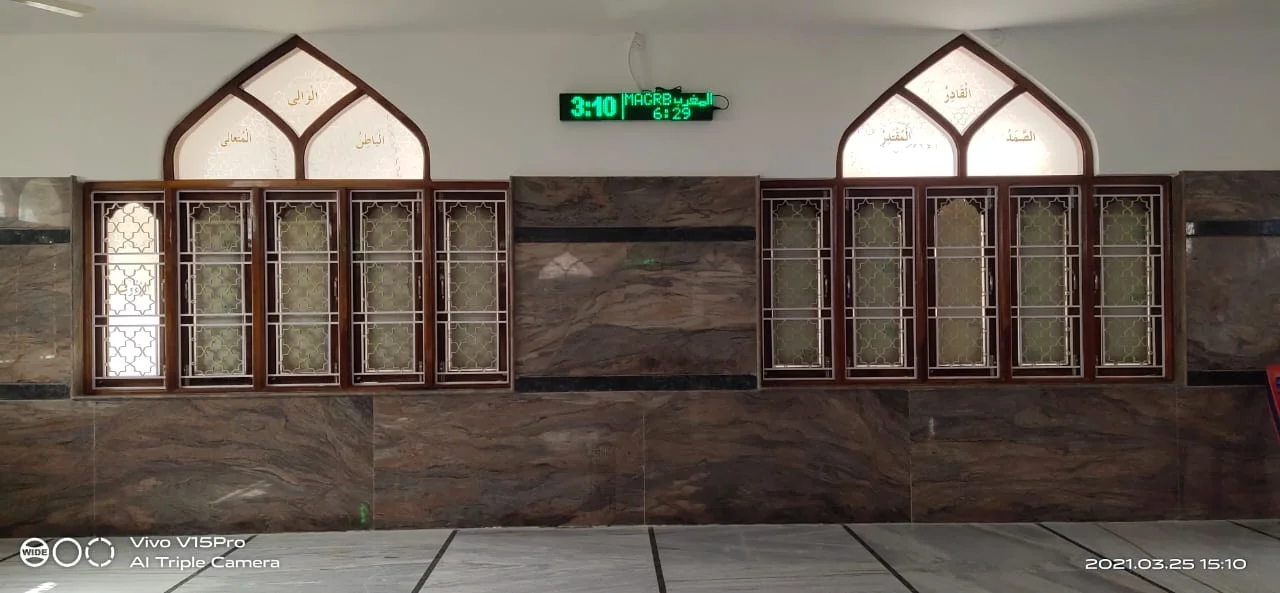

✅ Please ask to share more pics/videos of Displays installed in Masjids and we’ll share through WhatsApp Number 817-913-5712

No WiFi Router or Internet required!

This Smart Display doesn’t require any WiFi Router or Internet to operate or change data. The Display itself  becomes a WiFi Hotspot (Access Point) to which a Phone/PC can connect directly and then change data from the Android App or Webpage.

This version works best for places where the Jamath Times are fixed for a period of time & don’t change everyday. For places where the Jamath Times change daily based on the Azan Times (like in Saudi Arabia & other GCC countries), a separate Model A1 Azan Clock is available.

This is a Minimalistic Smart Prayer Times & Info LED Display for Masjids, Maktabs, Islamic Centers, Offices, Schools, Public Offices, etc to show upcoming Jamath Times, Start & End of Prayers (Azan Times) & other Custom Message.

This display has been designed to be Minimal, Small & Compact yet Futuristic & Smart enough to show relevant info as required.

Our LED Automatic Prayer Times & Smart Display supports over the air (OTA) firmware updates, additional features, modules & customization, additional languages can be added as and when made available.

Prayer Times can be changed simply by connecting a Smartdevice (Smartphone/PC/Tablet) to this Display’s inbuilt Hotspot WiFi and opening the Android App or navigating to a webpage on other devices. This does not require any WiFi Router or Internet Connection in the Masjid as the Display itself becomes a WiFi Hotspot and can be directly connected to from Phones for updating prayer times.

Features:

• Show all Jamath Times including Jumuah

• Displays all Times, Events & Info with 5 Sec Duration each in Idle mode

• Automatically change to fixed display showing upcoming Jamath/Prayer/Event Time few minutes before the Jamath/Prayer/Event Time

• 60 Seconds Countdown before Jamath with Beep alert when time’s reached

• Start & End Times of All Prayers automatically updated daily based on City Settings

• Automatic daily update of Maghreb Time (can be adjusted to add/subtract few minutes)

• Display Tulu-e-Aftab/Sunrise, Ishraq & Zawal (Auto updated daily based on City Settings)

• Display Saher & Iftar Times in Ramazan (Auto updated daily based on City Settings)

• Display Masjid/Organization Name & Custom Message (Can be changed from Remote App)

• Display Day & Date (Gregorian & Hijri)

• Asr Calculation: Hanafi or Shafi (Select from App)

• Prayer Settings for any City/Town/Village in India and 1000s of Cities worldwide

• Android App to update Prayer Timings directly from Phone. For iOS Devices, use Safari/Chrome to update

• RTC (Real Time Clock) to maintain time when Device is turned Off

• New features released via Firmware OTA updates

• Built on latest Internet of Things (IoT) technologies with the ability to integrate future enhancements & requirements

• Increase or Decrease LED Brightness from App

Technical Specifications

Weight3 Kg
LED ColorChoose from Green or Orange or Red or Blue or White LED Color
Input AC Voltage RangeStandard: 220V– 240VAC (110V Version also available for International Orders)
Remote Control – Devices SupportedAndroid App – Android version 4.0 and above

iPhone – Tested on iPhone 7, iPhone XR with iOS 12 – Safari & Chrome Browser

Windows 7, 8 & 10 (Chrome, Firefox & Edge Browser)

Not tested on Macbook’s Safari Browser

Power Rating50 W
In-built WiFi HotspotIEEE 802.11 b/g/n, 2.4Ghz
WiFi Password ProtectionYes
Brightness ControlYes, adjustable from 0 to 100
Real Time Clock (Time Backup when Power Off)Yes, with CMOS Battery to retain Time when power off
BuzzerYes
Buzzer alert at Jamath Time
Also beeps once every hour
Firmware (OTA) UpdatesYes, through Firmware Upgrade Mode wirelessly from Phone/PC
AC Outlet Plug TypeIndian, Type D. International Adapter is provided
Taqweem / Prayer Calculation MethodUniversity of Islamic Sciences, Karachi – Region Used – India, Pakistan, Afganistan, Bangladesh

Muslim World League – Region Used – Europe, Far East, parts of US

Islamic Society of North America – Region Used – North America (US and Canada)

Egyptian General Authority of Survey – Region Used – Africa, Syria, Lebanon, Malaysia

Umm al-Qura University, Makkah – Region Used – Arabian Peninsula

Shia Ithna Ashari, Leva Research Institute, Qum – Region Used – Some Shia communities worldwide

Asr Calculation – Juristic MethodStandard (Hanbali, Maliki, Shafi), Hanafi
Daylight Saving TimeManual
Hijri CalendarYes
Daily/Weekend AlarmsNo
Display Masjid/Org Name on LEDYes, can be edited from Config Page from App or Webpage from other Phone/PC
Indoor/OutdoorIndoor/Outdoor use
RainproofNo
For Weatherproof outdoor version, please see Outdoor Version

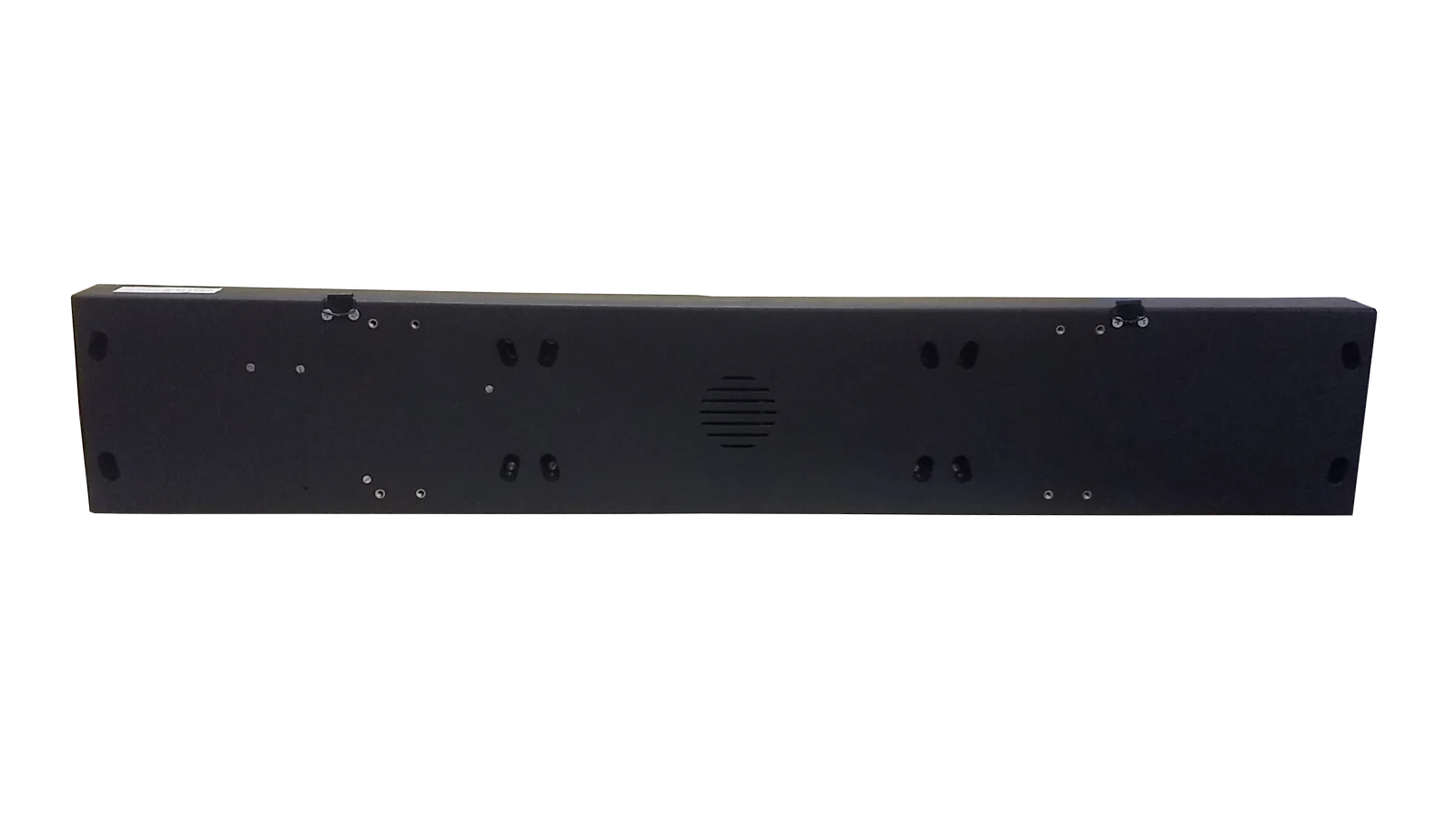

Cabinet BodyPlastic, Black Color
Warranty1 Year
Product Dimensions97cm x 17cm x 6cm (Length x Height x Width)

Packing Box Dimensions: 111 x 10 x 20 CM

Gross Weight: 3.5Kg

Volumetric Weight for Shipping: 4.4Kg

Modes of Operation:

The AlAleem Smart Prayer Times LED Display operates in two modes:

  • Info Mode
    • In this mode, the Display toggles over all the Prayer/Jamath Times, Azan Times and other info like Ishraq Time, Name of Masjid/Org etc



  • Event Mode:
    • This mode shows only the upcoming event like Jamath Time. This is automatically rendered 20 minutes prior to start of Jamath & is active till 5 minutes post event i.e Jamath time.
    • Example: If the Zuhr Jamath is at 1.30PM, this mode starts at 1.10PM and changes into Idle mode at 1.35PM
    • In this mode, there’s also a countdown timer as the Jamath time draws nearer (1 min before)

Info Mode

Event Mode

Detailed Setup Instructions are available here: https://alaleem.com/setup-instructions/

Weight3 kg
LED Color

Green, Red, Blue, White

Input AC Voltage Range

Standard: 110 – 240VAC (85 ~ 264VAC)
Frequency: 47 ~ 63Hz
Over Voltage Protection
Protection type : Shut down o/p voltage, re-power on to recover

Devices Supported

Android & Windows Phone (Chrome & Firefox)
iPhone – Tested on iPhone 7 with iOS 12 – Safari & Chrome
Windows 7, 8 & 10 (Chrome, Firefox & Edge Browser)
Not tested on Macbook\'s Safari Browser

Power Rating

50 W

WiFi

IEEE 802.11 b/g/n, 2.4Ghz

WiFi Password Protection

Yes, WPA2 Authentication

Brightness Control

Yes, adjustable from 0 to 100

Real Time Clock

Yes, with CMOS Battery to retain Time when power off

Buzzer

Yes
Buzzer alert at Jamath Time
Also chimes every hour

Firmware (OTA) Updates

Yes, through Upgrade Mode wirelessly from Phone/PC

AC Outlet Plug Type

Indian, Type D

Comes with Universal Plug Adapter supporting US, Canada, UK, Europe, Japan, China, Australia and other countries

Taqweem / Prayer Calculation Method

Muslim World League – Region Used – Europe, Far East, parts of US
Islamic Society of North America – Region Used – North America (US and Canada)
Egyptian General Authority of Survey – Region Used – Africa, Syria, Lebanon, Malaysia
Umm al-Qura University, Makkah – Region Used – Arabian Peninsula
University of Islamic Sciences, Karachi – Region Used – India, Pakistan, Afganistan, Bangladesh
Shia Ithna Ashari, Leva Research Institute, Qum – Region Used – Some Shia communities worldwide

Asr Calculation - Juristic Method

Standard (Hanbali, Maliki, Shafi), Hanafi

Daylight Saving Time

Manual

Hijri Calendar

No

Daily/Weekend Alarms

No

Display Masjid/Org Name on LED

Yes, can be edited from Config Page

Indoor/Outdoor

Indoor/Outdoor use

Rainproof

No
Please contact us if you\\\'d like an Outdoor Rainproof model (extra cost)

Cabinet Body

Plastic, Black Color

Warranty

1 Year

Product Dimensions

97cm x 17cm x 6cm (Length x Height x Width)
