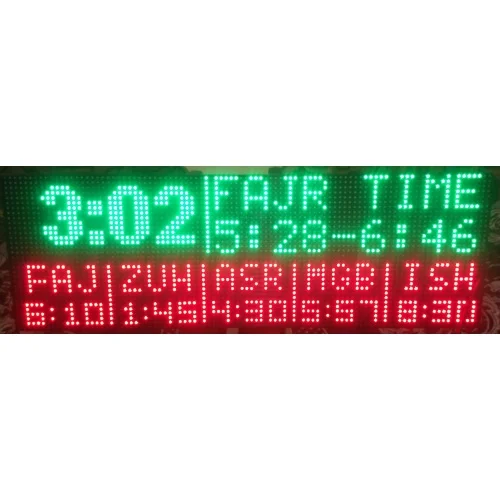

[L1] Large Smart Prayer Times Display for Masjids, Organizations & Offices | Prayer/Salah/Namaz Times LED Digital Display | Automatic Salaah Time Indicator

₹18,999.00




Automated WiFi Enabled (IoT ready) Salaah/Namaz (Prayers) Timings LED Display & Digital Clock for Masjids, Madrasas, Maktabs, Offices & Homes. Fully Automatic with Jamath notifications. Update info directly from Android App or from Phone/PC’s Web Browser Wirelessly on other Devices.

SKU: ALAL_LED_LJ_01-1

Category:

Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Clear

Smart Large 3 Feet x 1 Feet Automatic Phone Controlled LED Salaah/Namaz (Prayers) Timings LED Display & Digital Clock for Masjids, Madrasas, Maktabs, Offices & Homes. Fully Automatic with Jamath notifications & Namaz Timings Display. Update info directly from Android App or from iPhone Browser. Software Updates. Built on latest IoT Technologies.

No WiFi Router or Internet required!

This Smart Display doesn’t require any WiFi Router or Internet to operate or change data. The Display itself  becomes a WiFi Hotspot (Access Point) to which a Phone/PC can connect directly and then change data from the Android App or Webpage.

This version works best for places where the Jamath Times are fixed for a period of time & don’t change everyday. For places where the Jamath Times change daily based on the Azan Times (like in Saudi Arabia & other GCC countries), a separate Model will be available soon InShaAllah.

This is a Minimalistic Smart Prayer Times & Info LED Display for Masjids, Maktabs, Islamic Centers, Offices, Schools, Public Offices, etc to show upcoming Jamath Times, Start & End of Prayers (Azan Times) & other Custom Message.

This display has been designed to be Minimal, Small & Compact yet Futuristic & Smart enough to show relevant info as required.

Our LED Automatic Prayer Times & Smart Display supports over the air (OTA) firmware updates, additional features, modules & customization, additional languages can be added as and when made available.

Prayer Times can be changed simply by connecting a Smartdevice (Smartphone/PC/Tablet) to this Display’s inbuilt Hotspot WiFi and opening the Android App or navigating to a webpage on other devices. This does not require any WiFi Router or Internet Connection in the Masjid as the Display itself becomes a WiFi Hotspot and can be directly connected to from Phones for updating prayer times.

Features:

• Show all 5 Jamath Times at at glance in the bottom row.

• In the top Row, the Clock is displayed on the left and on the right all Jamath Times, Prayer Start & End Time, Ishraq, Zawal, Tulu (Sunrise), Date, Masjid Name & Sahr/Iftar with 5 Sec Duration each in Idle mode

• Automatically change to fixed display showing upcoming Jamath/Prayer/Event Time few minutes before the Jamath/Prayer/Event Time

• 60 Seconds Countdown before Jamath with Beep alert when time’s reached

• Start & End Times of All Prayers automatically updated daily based on City Settings

• Automatic daily update of Maghreb Time (can be adjusted to add/subtract few minutes)

• Display Tulu-e-Aftab/Sunrise, Ishraq & Zawal (Auto updated daily based on City Settings)

• Display Saher & Iftar Times in Ramazan (Auto updated daily based on City Settings)

• Display Masjid/Organization Name (Can be changed from Remote App)

• Display Day & Date

• Asr Calculation: Hanafi or Shafi (Select from App)

• Prayer Settings for any City/Town/Village in India and 1000s of Cities worldwide

• Android App to update Prayer Timings directly from Phone

• RTC (Real Time Clock) to maintain time when Device is turned Off

• New features via OTA updates

• Built on latest Internet of Things (IoT) technologies with the ability to integrate future enhancements & requirements

Technical Specifications

Weight7 Kg
LED ColorGreen, Red, Blue, White
Input AC Voltage RangeStandard: 200 – 240VAC
Remote Control – Devices SupportedAndroid App – Android version 4.0 and above

Windows Phone (IE Browser)
iPhone – Tested on iPhone 7 with iOS 12 – Safari & Chrome Browser
Windows 7, 8 & 10 (Chrome, Firefox & Edge Browser)
Not tested on Macbook’s Safari Browser

Power Rating100 W
WiFiIEEE 802.11 b/g/n, 2.4Ghz
WiFi Password ProtectionYes
Brightness ControlYes, adjustable from 0 to 100
Real Time Clock (Time Backup when Power Off)Yes, with CMOS Battery to retain Time when power off
BuzzerYes
Buzzer alert at Jamath Time
Also chimes every hour
Firmware (OTA) UpdatesYes, through Upgrade Mode wirelessly from Phone/PC
AC Outlet Plug TypeIndian, Type D
Taqweem / Prayer Calculation MethodUniversity of Islamic Sciences, Karachi – Region Used – India, Pakistan, Afganistan, Bangladesh

Muslim World League – Region Used – Europe, Far East, parts of US
Islamic Society of North America – Region Used – North America (US and Canada)
Egyptian General Authority of Survey – Region Used – Africa, Syria, Lebanon, Malaysia
Umm al-Qura University, Makkah – Region Used – Arabian Peninsula
Shia Ithna Ashari, Leva Research Institute, Qum – Region Used – Some Shia communities worldwide

Asr Calculation – Juristic MethodStandard (Hanbali, Maliki, Shafi), Hanafi
Daylight Saving TimeManual
Hijri CalendarNo
Daily/Weekend AlarmsNo
Display Masjid/Org Name on LEDYes, can be edited from Config Page from App or Webpage from other Phone/PC
Indoor/OutdoorIndoor/Outdoor use
RainproofNo
Please contact us if you’d like an Outdoor Rainproof Model (extra cost)
Cabinet BodyPlastic, Black Color
Warranty1 Year
Product Dimensions102cm x 34cm x 6cm (Length x Height x Width)
Weight6 kg
LED Color

Green, Red, Blue, White

Input AC Voltage Range

Standard: 110 – 240VAC (85 ~ 264VAC)
Frequency: 47 ~ 63Hz
Over Voltage Protection
Protection type : Shut down o/p voltage, re-power on to recover

Devices Supported

Android & Windows Phone (Chrome & Firefox)
iPhone – Tested on iPhone 7 with iOS 12 – Safari & Chrome
Windows 7, 8 & 10 (Chrome, Firefox & Edge Browser)
Not tested on Macbook's Safari Browser

Power Rating

50 W

WiFi

IEEE 802.11 b/g/n, 2.4Ghz

WiFi Password Protection

Yes, WPA2 Authentication

Brightness Control

Yes, adjustable from 0 to 100

Real Time Clock

Yes, with CMOS Battery to retain Time when power off

Buzzer

Yes
Buzzer alert at Jamath Time
Also chimes every hour

Firmware (OTA) Updates

Yes, through Upgrade Mode wirelessly from Phone/PC

AC Outlet Plug Type

Indian, Type D

Comes with Universal Plug Adapter supporting US, Canada, UK, Europe, Japan, China, Australia and other countries

Taqweem / Prayer Calculation Method

Muslim World League – Region Used – Europe, Far East, parts of US
Islamic Society of North America – Region Used – North America (US and Canada)
Egyptian General Authority of Survey – Region Used – Africa, Syria, Lebanon, Malaysia
Umm al-Qura University, Makkah – Region Used – Arabian Peninsula
University of Islamic Sciences, Karachi – Region Used – India, Pakistan, Afganistan, Bangladesh
Shia Ithna Ashari, Leva Research Institute, Qum – Region Used – Some Shia communities worldwide

Asr Calculation - Juristic Method

Standard (Hanbali, Maliki, Shafi), Hanafi

Daylight Saving Time

Manual

Hijri Calendar

No

Daily/Weekend Alarms

No

Display Masjid/Org Name on LED

Yes, can be edited from Config Page

Indoor/Outdoor

Indoor/Outdoor use

Rainproof

No
Please contact us if you\'d like an Outdoor Rainproof model (extra cost)

Cabinet Body

Plastic, Black Color

Warranty

1 Year

Product Dimensions

102cm x 34cm x 6cm (Length x Height x Width)
